Slit Lamp HS-5000
Slit Lamp HS-5000 - Image 2

Slit Lamp HS-5000

$ 86.00

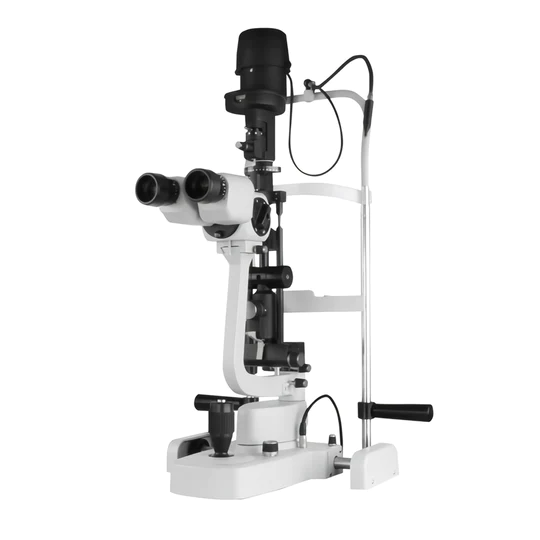

Huvitz HS-5000 Slit Lamp Microscope offers increased accuracy, a wide field of view with a crystal clear image every time.

Huvitz, an industry-leading slit lamp manufacturer and world-class optics designer, presents the HS-5000 Slit Lamp. This Haag-Streit Style Tower Illumination features a Galilean Converging Binocular Optical System and a five-position drum style magnification changer that offers a wide field of view and a crisp clear image every time. The omnidirectional joystick with trigger button and five built-in filters are among the many “”extras”” you’ll enjoy when selecting the quality designed slit lamp.

Category:

Description

SLIT ILLUMINATION
Slit Length(mm) 0.3~14
Slit Width (mm) 0~14 continuous
Slit Projection 1x
Aperture Diaphragms 0.02 / 0.04 / 0.11 / 0.19 / 0.4 / 0.47in (0.3 / 1 / 3 / 5 / 9 / 12mm)
Filters Cobalt Blue, Red-Free, Grey, Heat absorption and Yellow
Slit Rotation 0°~180°continuous
PATIENT’S EYE / PRISM
Angle of Incidence 0°, 5°, 10°, 15°, 20°
Surface Working Distance 3.15in (80mm)
MICROSCOPE
Microscope 5 steps
Type Galilean Converging Binocular
Magnification 5 Position Rotating Drum
Eyepieces 12.5x
Total Magnifications 6x, 10x, 16x, 25x, 40x
Real Fields of View (mm) 38.5,22.2, 15.2, 10.5, 6.7
Inter-Pupillary Adjustment 2.16in ~ 3.15in (55mm ~ 80mm)
BASE
Vertical Movement 1.10in (28mm)
Longitudinal Movement 3.07in (78mm)
Lateral Movement 4in (98mm)
Fine Base 0.4in (10mm)
Power Supply Free Voltage 100~240V AC
Voltage Frequency 50/60Hz
Power Consumption 70VA
Instrument Voltage 12V DC
Halogen Bulb 12V 30W
Fixation Point Bulb 3.4V 20mA
OPTION: PC, Table Designs and details can be changed without prior notice for the purposes of improvement
