Description
Features
- 1. Subjective VA Test
- Comparison between subjective and objective VA tests yields more reliable and accurate data.
- 2. Wavefront Technology
- Huvitz’ wavefront analysis algorithm goes beyond general refraction to conclude highly accurate and reliable cornea refractive power and index.
- 3. TFBUT Measurement and Meibography
- Experience TFBUT function and Meibography to obtain thorough information about tear film/dry eye and meibomian gland conditions.
- 4. Wireless Communication
- Experience wireless communication with HLM-9000 and HDR-9000 via Wi-Fi for data transmission.(RS-232 cable is also possible)
-
Specifications
- 1. Measurement Mode
K/R Mode Continuous Keratometry & Refractometry REF Mode Refractometry KER Mode Keratometry Color View Mode Color View & Contact Lens Fitting Assistance(White & Blue LED Light) Meibography Mode Special Mode for Observing Meibomian Gland TFBUT Mode Special Mode for Measuring TFBUT(Tear Film Break-Up Time) - 2. Refractometry
Vertex Distanc(VD) 0.0, 12.0, 13.5, 13.75, 15.0 Sphere(SPH) -30.00~+25.00 (VD=12mm)(increments : 0.01, 0.12, 0.25D) Cylinder(CYL) 0.00~±12.00D (increments 0.01, 0.12, 0.25D) Cylinder Form -, +, ± (Mixed) Pupil Distance 10~85mm Minimum Pupil Diameter ø2.0mm - 3. Keratometry
Radius of Curvature 5.0~13.0mm (increments : 0.01mm) Corneal Power 25.96~67.50D (increments : 0.05, 0.12, 0.25D)(When corneal equivalent refractive index is 1.3375) Corneal Astigmatism 0.00~ -15.00D (increments : 0.05, 0.12, 0.25D) Axis 0~180° (increments : 1° ) Pupil, Iris Diameter 2.0~14.0mm (increments : 0.1mm) Memory of Data 10 measurements for each eye - 4. VA Test – Subjective Refractive Test
VA Measurement <0.1/ 0.1/0.25/0.32/ 0.4/ 0.5/0.63/ 0.8/ 1.0/1.25><20/200 / 20/200 / 20/80 / 20/60 / 20/50 / 20/40 / 20/30 / 20/25 / 20/20 / 20/16> Sphere(SPH) -22D to +22D (increment 0.25D) Cylinder(CYL) 0 to ±10D (Max, increment 0.25D) Cyl Axis 0 to 180° (increment 1°/5° ) - 5. Movement Range
Up-Down ±15mm Left-Right ±5mm, ±2mm Forward-Backward ±5mm, ±2mm - 6. Others

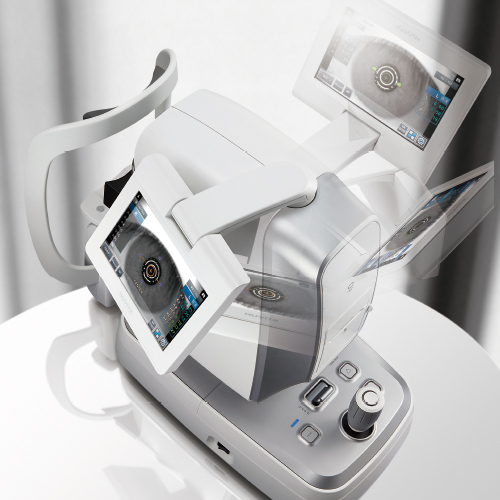

Display 7 inch Wide Color TFT LCD, Touch panel with Tilting function Interface RS-232 x 1, USB(for Service) x 1, Wi-Fi (for Data communication) Wi-Fi Band : 2.4GHz, IEE802.11b/g, Security : WPA2-PSK Internal Printer Thermal line printer with Auto cutting function Power Saving Automatic switch-off (5min) Power Supply 100-240V AC, 1.0-0.6A, 50/60Hz Dimension /Weight 255(W) x 550(D) x 490(H) / 19Kg - ** Designs and details can be changed without prior notice for the purposes of improvement.
