Description
Features

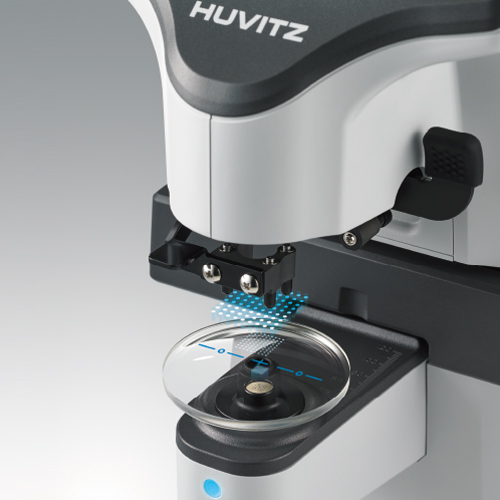

- 1.WaveFront Technology
- With more measurement points(81), providing more accuracy in the measured values utilizing the Hartmann Sensor Wavefront Analysis Technology.
- 2. Auto Lens Recognition
- Single Vision, Progressive and other lenses are recognized and the HLM-1 automatically enters the appropriate measurement mode.
- 3. Improved Progressive Lens Measurement
- Fast & simple measurement by moving the target and following the guides on the screen.

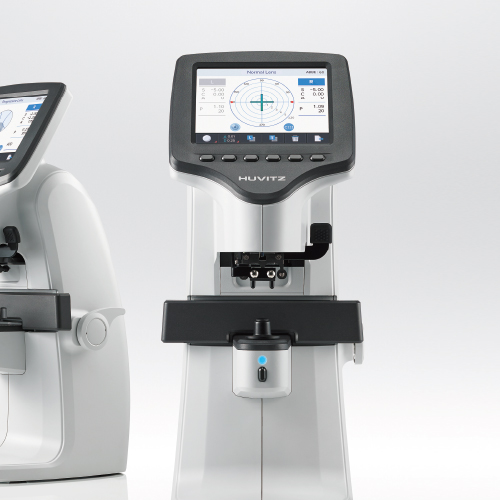

- 4. 5.7” LCD
- High-Resolution IPS Panel, Anti-Glare coating, Hardened coating.
Specifications
- 1. Measurement Mode
| Cylinder | ±, + , – |
|---|---|
| Prism | Rectangular / Pole / Displacement |
| Wave | E-Line, d-Line |
| LED Wave | 525nm (Green) |
| Contact Lens | Hard(RPG) / Soft Contact Lens |
| Measurement Method | Hartmann Sensor |
- 2. Measurement Range
| SPH | 0D~±25D (0.01/0.06/0.12/0.25) |
|---|---|
| CYL | 0D~±10D (0.01/0.06/0.12/0.25) |
| Axis | 0°~180° (1° step) |
| ADD | 0~10D (0.01/0.06/0.12/0.25) |
| Prism | 0~20△ (0.01/0.06/0.12/0.25) |
- 3. Other Features
| Screen | 5.7” color LCD Panel(640×480) |
|---|---|
| Interface | RS-232C (9600,57600,115200bps) |
| Size/Weight | 182(W) x 235(D) x 415(H) mm, 4.0kg |
| Power Supply | AC100~240V, 50/60Hz, 0.3~0.2A |
- ** Designs and details can be changed without prior notice for the purposes of improvement.
