1. Real time guide

Graphical representation displayed on screen guides test process easier &faster in real time.

2. Various image clips

Color blindness test, Amsler’s Grid, and many other kinds of near vision charts are provided for more perfect test. Various image clips including progressive lens guide, diagram of an eye & refraction, etc. support better understanding for customers.

3. Dual cross cylinder lens

Dual cross cylinder lens supports fast and convenient astigmatic test.

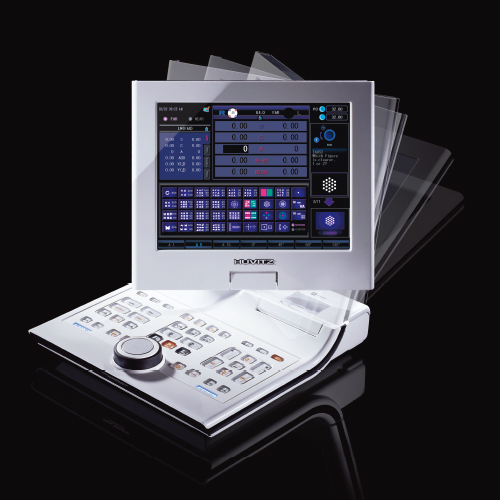

• 4. Touch Screen

Touch screen interface offers intuitive guide with great convenience for operation.

Specifications

1. MEASUREMENT MODE

MEASUREMENT MODE Spherical Lense	-29.00~+26.75D (Regular) (일반검사) -19.00~+16.75D (Cross Cylinder or Prism Test) (0.12D / 0.25D / 0.5D / 1.0D / 2.0D / 3.0D / 4.0D Increments)
Cylinder Lense	0.00~±8.75D (0.25D / 0.5D / 1D / 2D / 3D Increments)
Cylinder Axis	0。~180。(1。/ 5。/ 15。Increments)
PD	48~80mm( 0.5 / 1mm Increments) Near PD 50~74mm ( Near Working Distance : 35~70cm)
Rotary Prism	0~20Δ (0.1Δ/ 0.2Δ/ 0.5Δ/ 1Δ/ 2Δ Increments)
Cross Cylinder	±0.25D / ±0.50D / ±0.25D Dual Cross Cylinder (Split Prism Lens )
Retinoscope	+1.5D, +2.0D (Measurement Distance 67cm, 50cm)

2. AUXILIARY LENSE

Pin Hole Lense	ø2mm
Madox Rod	Right Eye (Red, Horizontal ) Left Eye (Red, Vertical )
Red / Green Filter	Right Eye (Red), Left Eye (Green)
Polarizing Filter	Right Eye :135。, 45。/ Left Eye : 45。, 135。
Split Prism	Right Eye : 6ΔBU / Left Eye :10ΔBI (up to 5ΔComplement)
Fixed Cross Cylinder	±0.50D (Fixed with the axis set at 90。

3. DIMENSIONS

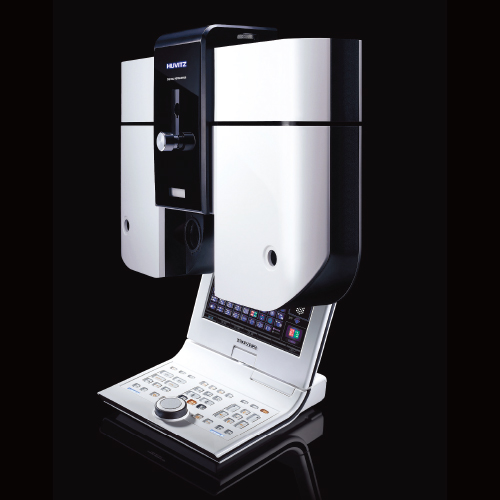

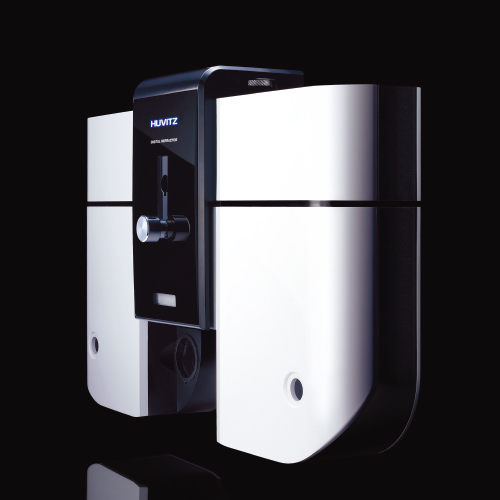

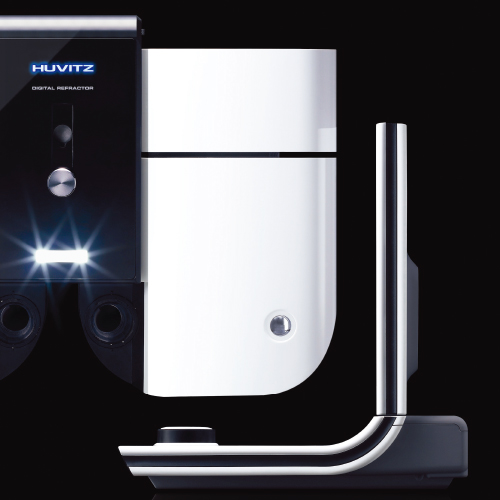

Digital Refractor	361(W) x 108(D) x 280(H) mm / 4.74kg
Operation panel	216(W) x 246(D) x 225(H) mm / 1.89kg (Printer Inclusion )
Junction Box	251(W)x 240(D)x 71(H) mm / 1.88kg
Power Supply	AC 100-120V / AC 200-240V 50 / 60Hz
Power Consumption	145VA

** Designs and details can be changed without prior notice for improvements.
